High Pressure Hose Without Connector for PCP Pump

  • Sale
  • Regular price Rs.0.00
Shipping calculated at checkout.


SKU : 1472

Description:

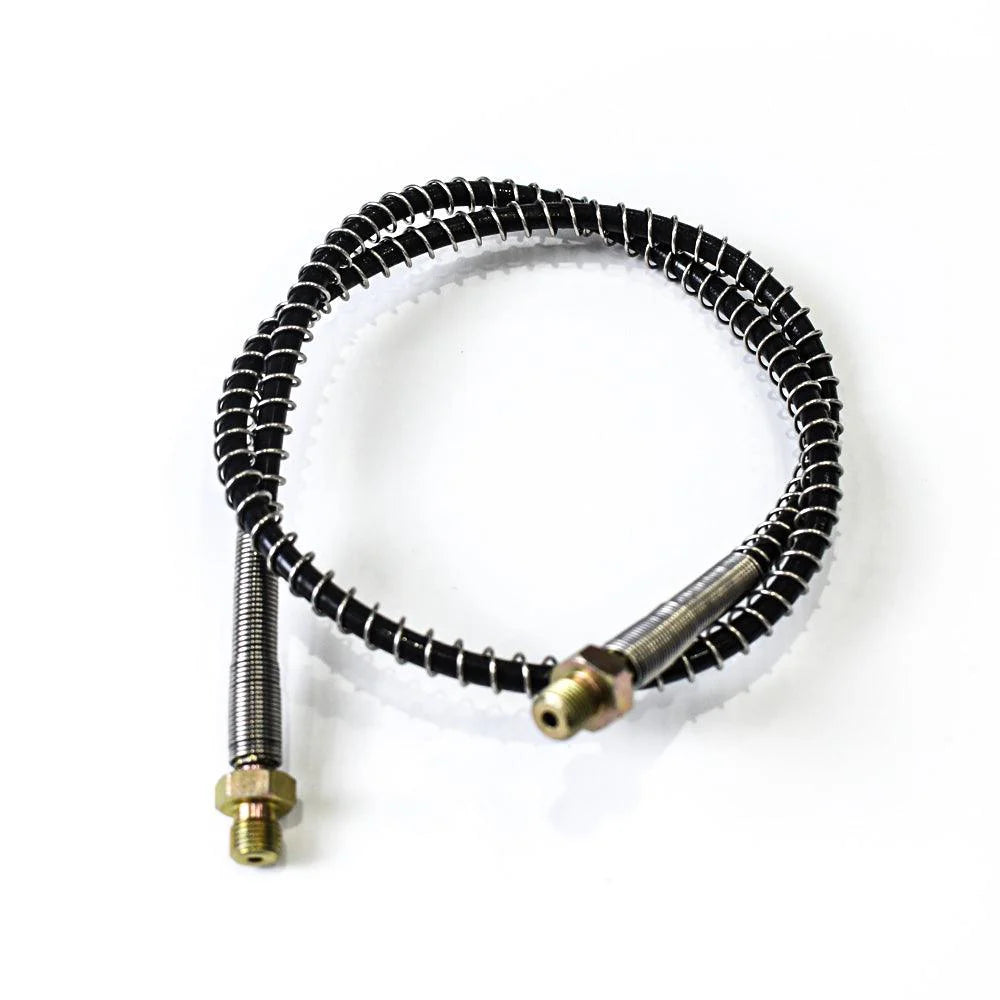

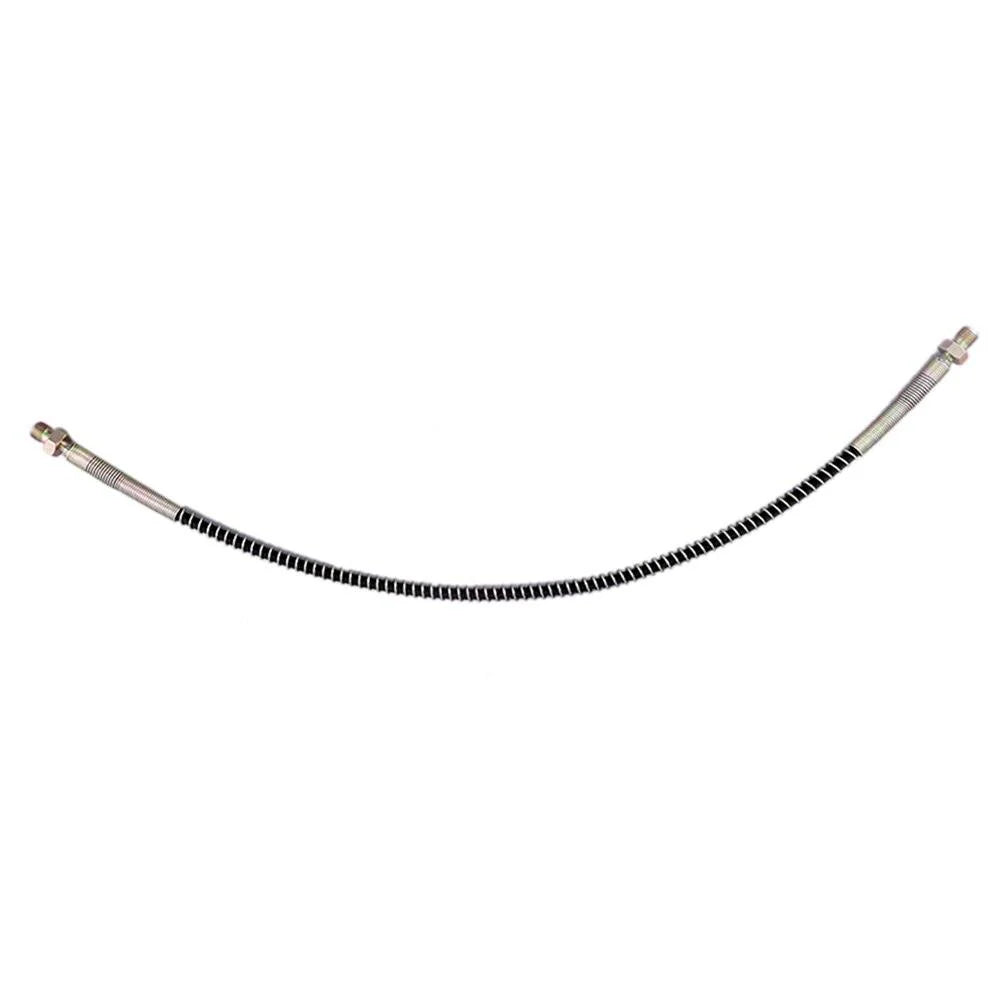

This Hose Has No Fittings Attached & You'll Need To Purchase These Separately If You Need. The Terminal Points On The Hose Is Male 1/8" BSP Threaded, So You'll Need To Purchase Your Fittings Separately If Needed.

We Stock This Hose A Bare-Bones One, Seeing That Alot Of People Already Have Their Own Fittings, & Acquiring More Might Just Be Extraneous For Them.

The Hose Has Dot Matrix Printing, Stating German Manufacture.

Moreover, This Hose Is Thoroughly Steel-Wire Shielded, Which Is Flexible, Corrosion-Coated And Should Prevent Most Sharp Edges From Touching Your Hose. The Steel Coiling Beefens Up Near The Connector Ends, Where These Types Of Hoses Are Particularly Vulnerable.
Otherwise, We Supply These Hoses Rust-Free & The Threading Free Of Burrs. However, Because This Is A Low Cost Product, you'll Need To Watch For Corrion Forming Around The Connector Pieces & On Occasion, Flush It Off w/ BALLISTOL UNIVERSAL OIL - Don't Leave The Corrosion On For Too Long, As It Not Only Spreads Over The Surface, But Can & Will Also Penetrate, Leaving You With Big Problems. The Interior Of The Hose Should Be Relatively Maintenance Free, Though You Can Hang It Vertically For Storage, To Prevent The Formation Of Moisture Inside. Otherwise, Just Store In A Cool, Dry Place, Preferably Inside Of A Jiffy Bag w/ Some Desiccant Sachets Typically Found In Shoe Boxes etc.

  • FEMALE Q/C X 1/8" BSP FEMALE THREADING
  • MALE Q/C x 1/8" BSP FEMALE THREADING
  • 1/8" BSP DOWTY WASHER

    Specification:

Length Total

525mm

Hose Only

494mm

Hose Diameter

6.5mm

Through-Hole Diameter

3mm

Pitch Of Wire Shield Coil

5.80mm

Wire Coil Diameter

8.75mm

Length Of Threaded Terminals

10.26mm

Hex Drive Size

13.95mm

Terminal Finish

Yellow Passivated
